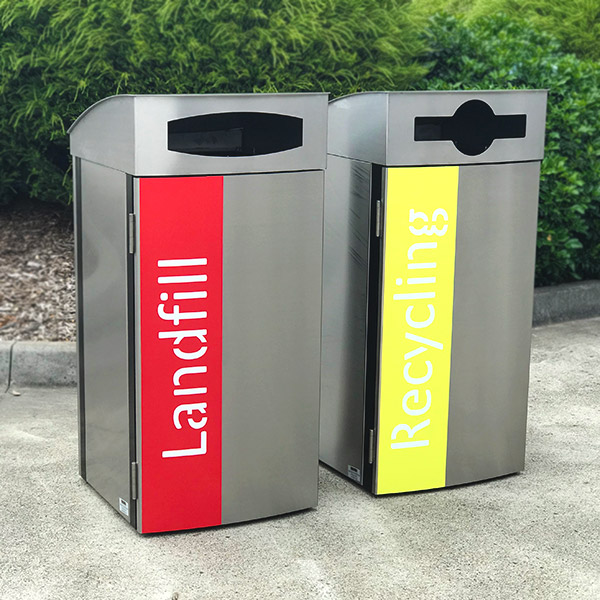

iNfinity Series Bin Surround with Curved Cover

88805 (120LT) & 88815 (240LT)

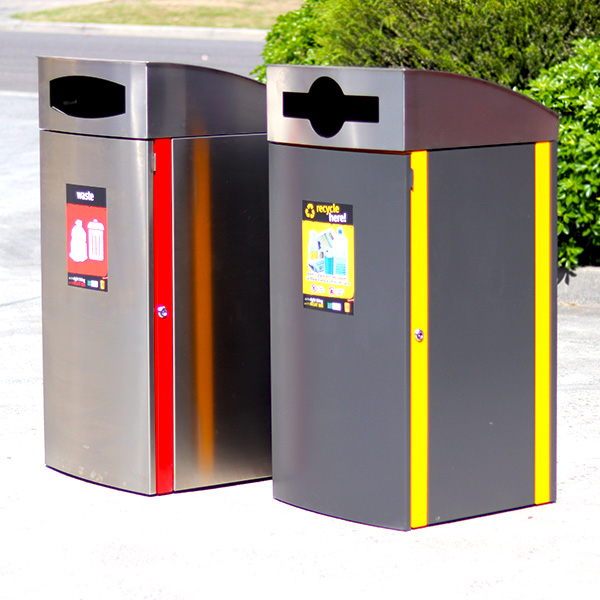

The curved cover Infinity series bin surround is a popular choice. The curved cover is fully welded for extra strength and has frogmouth openings that suit both rubbish and recycle applications. Utilising an ingenious sub frame design, this bin is both extremely strong but also offers a huge variety of customisable options to tailor the perfect solution.

Read how to specify Infinity series bin surrounds here.

Learn More about 888 series

*Patent no 2018900173.



Approved Supplier to

preffered supplier
LGAT
Local Procurement
localbuy

How many units do you require?

Pick your optionsSee Specifications

Options

Pick what you need

Curved Canopy for 888
Curved Frogmouth Cover
Domed Cover
Flat Cover
Folded Canopy
Clear

  • 120LT Dimensions L 566 x W 565 x H 1232 mm
  • 240LT Dimensions L 841 x W 665 x H 1390 mm
  • Opening Options for Covers Frogmouth, Round, Rosette, Letterbox
  • Frame Material 50x25mm RHS
  • Panel Material 2.0mm Thick
  • Base Material 3.0mm Thick
  • Batten Material 65mm x 19mm
  • Cover Material 2.0-3.0mm Thick
  • Cover Style Canopy 888
    Curved
    Domed
    Flat
    Folded Canopy
  • Cover Material 304 Stainless
    316 Stainless
    Powder Coated
  • Bin Size 120 LT
    140 LT
    240 LT
    80 LT
  • Frame Options Brush Finish 304 Stainless
    Brush Finish 316 Stainless
    Powder Coated
  • Panel Material 304 Stainless
    316 Stainless
    Powder Coated
  • Side Panel Material 304 Stainless
    316 Stainless
    Composite Battens
    Hardwood Battens
    Powder Coated
    Timber-Look Aluminium Battens
    Weathering Steel
  • Lock System Both
    Cam Lock
    Magnet Latch

Documents

Useful Information

Drafting Plans

Can’t find exactly what you need?

Get in touch to get a quote on a custom build or learn more.

Contact Us
