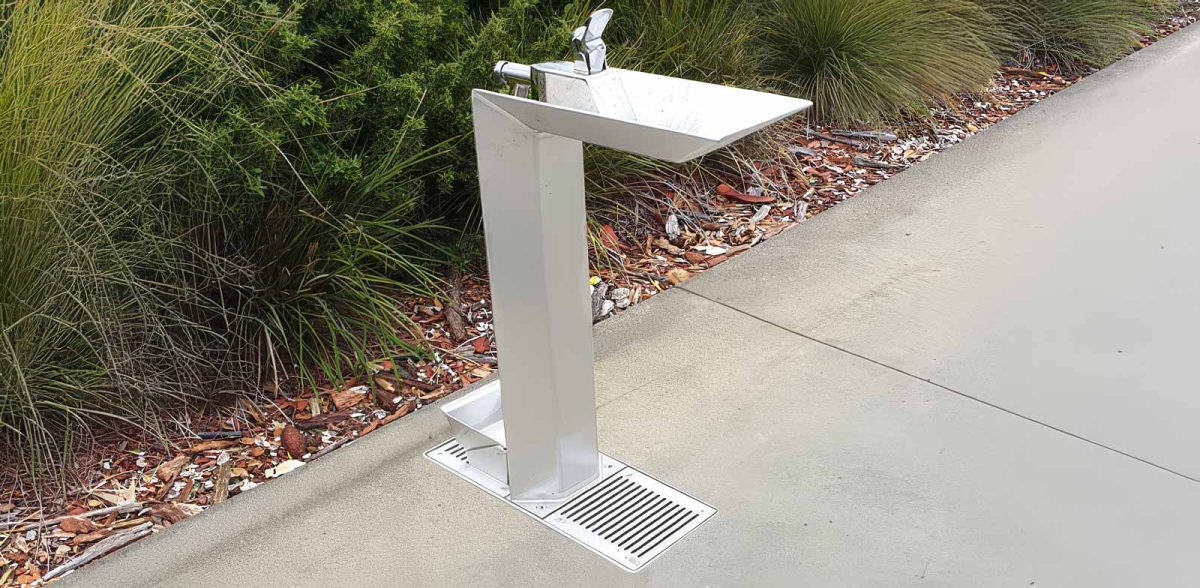

New Generation Kiama Drink Fountain

Since 2018 when they were first launched, Kiama Drink Fountains have proven a popular choice for parks, schools, and open space projects. The features, strength and quality of this fountain place it as a high-end product, while the cost of the fountain reflects a mid-range offering. A redesign of the fountain was necessary to ensure the best possible installation result – every time.

The Challenge

The complete Kiama Fountain came with everything needed to install the unit in-situ and provide a drink fountain that was built-in to its landscape. However, from observing completed municipal projects that included the installation of the Kiama Drink Fountain over time, it was obvious that installation posed a challenge for contactors that were unfamiliar with the product. And while installation instructions were readily available (shipped with the product or available online), it was generally the contractor that missed receiving them. Assumptions and therefore mistakes were made.

The Solution

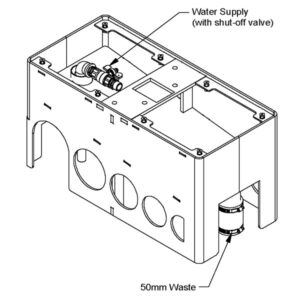

Our clever engineers set about designing a new rag bolt that made the process of sub-surface installation more obvious. The result was the adoption of an “Installation Cassette” combining all sub-surface drink fountain components, including the rag bolt and drainage pit. Installation is now as simple as aligning the top of the cassette with the finished ground level (FGL). So, whether the cassette is delivered ahead of the fountain or not, the sub-surface preparation cannot be mistaken.

As an added benefit of the redesign, the stop valve usually required in the project can be located inside the drainage pit if preferred. Access to the stop valve is behind the removable stainless grate.

The Finished Product

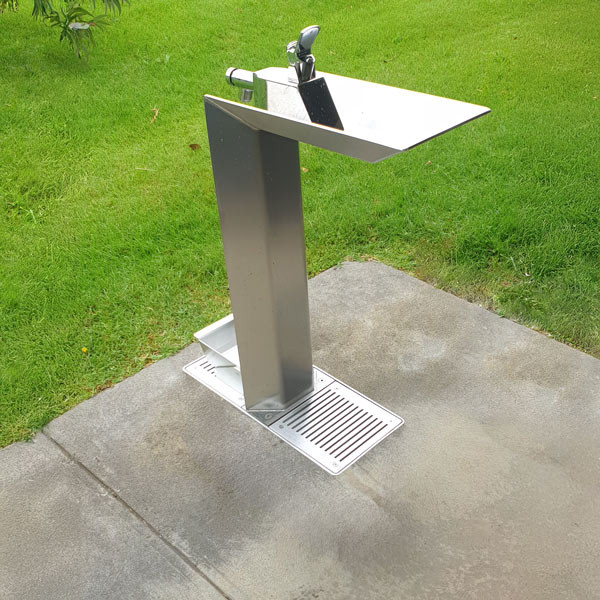

Once the cassette is installed, the grates can be fitted to make the area safe while all other works are carried out. Installation of the drink fountain body can be fitted off once works are complete. Bolt the body down, connect the water supply and re-install the grates.

The new installation cassette should ensure a flush in-built installation every time. Temporary removal of the fountain is also possible due to the separate fountain and cassette parts. Enquire about a full-size blanking plate should the fountain be removed for an extended period. The blanking plate provides a strong and flush finish with no obstructions.

The Kiama Drink Fountain has already gained its popularity for use throughout Australian commercial landscapes. Now, thanks to its 2nd generation design is now one of the easiest to install. Installation instructions are always helpful when installing anything, but if they are not on hand, it helps if the product is plainly obvious to install.

Draffin Street Furniture are committed to excellence in design and manufacturing, all to ensure long life products for demanding environments. But just like a chain is only as strong as its weakest link, poor installation can lead to untimely failure of products. Draffin Street Furniture alter and redesign products on a regular basis to fine tune them, ensuring high performance reliability across the entire range of standard products.

With over 65 years of manufacturing experience, Draffin have amassed great knowledge and expertise in providing heavy-duty reliability for products that are subjected to any and all conditions across Australia.
